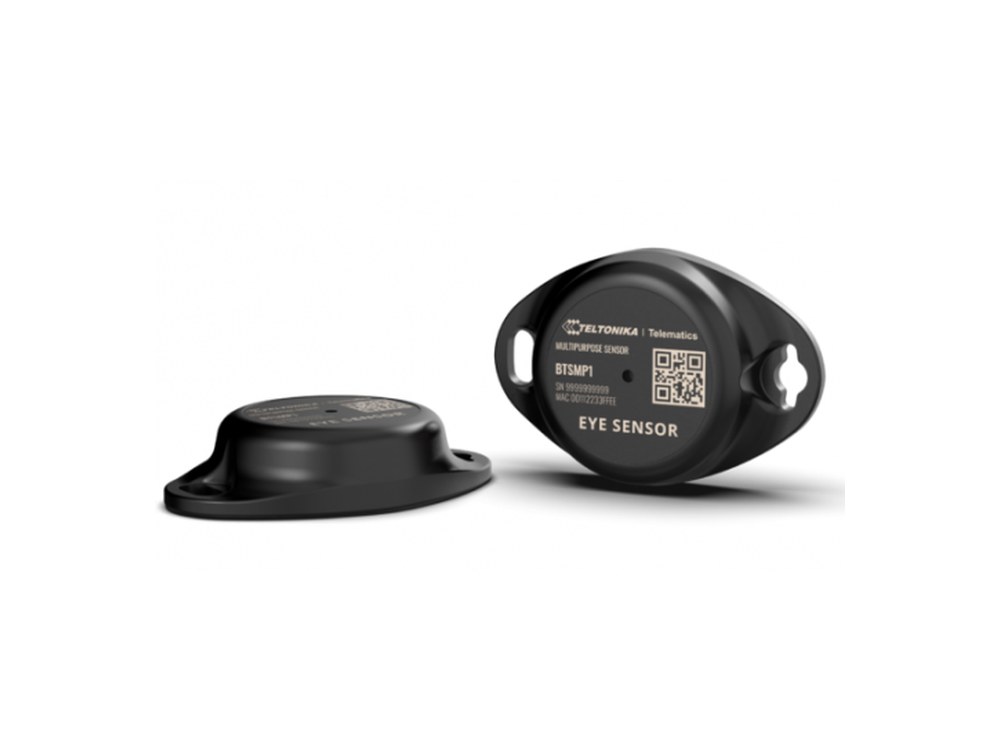

Bluetooth sensor tag
A small Bluetooth Low Energy tag with four sensors: temperature, humidity, movement and a magnet detector. It broadcasts what it senses to a nearby tracker, which sends it back with the position. Sealed to IP67, with no wiring and no charging.
Temperature, humidity, an accelerometer and a magnet detector. The accelerometer picks up movement and the tilt of the item it is on.
The magnet detector senses a door or lid opening and closing when a magnet sits on the other half. Fit the tag on a trailer door, a cabinet or a lid.
A non-replaceable 600 mAh cell gives 4+ years at the default 5 s interval, 5+ years at 10 s, and 7+ years at 10 s with the accelerometer switched off.
IP67 and 18 g. It mounts with two screw holes, a strap or tape, indoors or outside.
Broadcast interval and transmit power are configurable with Teltonika's mobile app. It supports the iBeacon and Eddystone protocols as well as Teltonika's own.
The sensor does not report on its own. It has no GPS and no mobile connection, so a Bluetooth-capable tracker in range has to read it and pass the readings on. The temperature sensor measures from −20 °C to +60 °C, which is also the operating range of the tag, and the battery is not replaceable.
| Sensors | |
|---|---|
| Temperature | Measuring range −20 °C to +60 °C |
| Humidity | Yes |
| Accelerometer | Movement, pitch and roll |
| Magnet detection | Yes |
| Bluetooth | |
| Standard | Bluetooth 4.2 compliant, Bluetooth 5.2 certified |
| Range | 80 m |
| Transmit power | Up to 8 dBm |
| Receiver sensitivity | −88 dBm |
| Frequency | 2.402-2.480 GHz |
| Antenna gain, peak | 1.2 dBi |
| Protocols | iBeacon, Eddystone, Teltonika |
| Power | |
| Battery | CR2450, lithium manganese dioxide, 600 mAh, not replaceable |
| Life at 3 s interval | 2.5+ years |
| Life at 5 s interval (default) | 4+ years |
| Life at 10 s interval | 5+ years |
| Life at 10 s, accelerometer off | 7+ years |
| Physical | |
| Dimensions | 56.6 x 38 x 13 mm |
| Weight | 18 g |
| Ingress protection | IP67 |
| Mounting | Two holes to screw, leash or strap; tape |
| Customization | Custom logo on request, with special conditions |
| Environment | |
| Operating temperature | −20 °C to +60 °C |
| Humidity | 0% to 100%, non-condensing |
| Features | |
| Functions | Beacon ID, LED, temperature, humidity, accelerometer, magnet detection, hibernate |
| Microcontroller | ST Microelectronics BlueNRG-2 |
| Approvals | |
| Regulatory | CE RED, FCC, UKCA, RoHS, E-mark, EAC, ANATEL, REACH, SIRIM QAS, SDPPI POSTEL, TELEC |
Tell us what you need to keep track of and Eddy will call you back himself with a straight answer about whether this is the right unit for it.
Eddy — one of the founders
A 30-second message, in his own voice
No. It has no GPS or mobile connection. A Bluetooth LE tracker in range reads it and sends the data on.
No. The cell is not replaceable. At the default interval it lasts 4 years or more, and then the tag is replaced.
The datasheet gives the measuring range, −20 °C to +60 °C, but not an accuracy figure, so we will not quote one. If you have a tolerance you must meet, ask us before you buy.
Fit the tag on the door frame and a magnet on the door. When the magnet moves away, the tag reports it. We will confirm the fit for your trailer or cabinet.
Tell us what the asset is and where it sits. If something else fits better we will say so.
No contracts. Cancel any time and keep the hardware. If you are not happy in the first 30 days, we buy it back.
