Plug-in OBD-II tracker

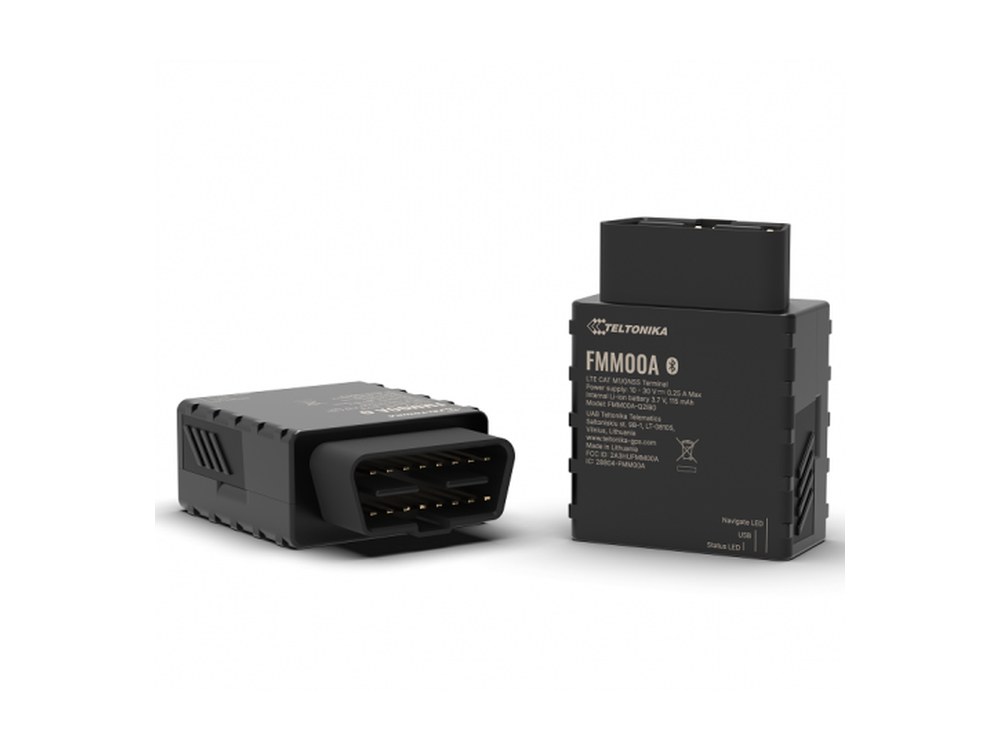

Teltonika FMM00A

A plug-in LTE Cat M1 tracker that fits the OBD-II port under the dash. No tools, no wiring and no appointment: it is plugged in and it starts reporting. It reads data from the vehicle as well as its position, which makes it the quick choice for light vehicles.

OBD-IIPlug-in, no wiring

63 gComplete weight

Cat M1LTE connectivity

Bluetooth 4.0LE sensors supported

What it does

Plug in and it tracks

It connects to the standard OBD-II port, powers itself from the vehicle and reports straight away. Nobody has to strip trim or splice a wire.

Reads vehicle data

Pulls standard OBD-II parameters from the vehicle's computer over K-Line and CAN bus. What it can read depends on the vehicle model, and fuel monitoring in particular varies by vehicle.

Detects crashes and rough driving

A built-in accelerometer detects crashes, towing, harsh driving and excessive idling, and records trips.

Reads Bluetooth sensors

Bluetooth 4.0 LE supports beacon labels and temperature, humidity, magnetic and movement sensors, so a sensor placed in the vehicle can report through the unit.

Updated without a site visit

Firmware and configuration update over the air, so a change across the fleet does not mean touching every unit.

Where it is suited

The OBD-II port is easy to reach, which is also what makes this unit easy to unplug. It is the right tool for light vehicles where speed of setup matters most and tamper resistance matters less, such as rentals, dealer stock and pool cars. For a vehicle that needs to resist removal, a hardwired unit is the better choice. The case is IP41, so it belongs inside the cab.

Cars and light vans
Rental and leased vehicles
Dealer and pool vehicles
Small fleets that want to start quickly
Vehicles you may move the tracker between

Specifications

Positioning
Positioning	GPS, GLONASS, Galileo, BeiDou, QZSS
Receiver	33 tracking / 99 acquisition channels
Tracking sensitivity	−165 dBm
Accuracy	Under 3 m
Time to fix	Hot start under 1 s, warm under 25 s, cold under 35 s
Network
Standard	LTE Cat M1
Module	Quectel BG95-M1
Bands	B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B85
Data rate	Up to 588 kbps down, 1119 kbps up
Transmit power	Class 5, 20 ± 2 dBm (LTE-FDD)
SMS	Text and data
SIM	Micro SIM
Power
Input voltage	10-30 V DC with overvoltage protection
Backup battery	115 mAh Li-ion, 3.7 V
Interfaces
OBD-II	K-Line, CAN bus data
Bluetooth	4.0 + LE
Supported peripherals	Bluetooth LE beacon label and beacon, temperature sensor, magnetic sensor, movement sensor, temperature and humidity sensor
USB	2.0 Micro-USB
Memory	128 MB internal flash
Physical
Dimensions	67.2 x 49.6 x 25 mm (L x W x H)
Weight	63 g
Antennas	Internal high-gain GNSS and cellular
Ingress protection	IP41
Environment
Operating temperature, no battery	−40 °C to +85 °C
Battery charge temperature	0 °C to +45 °C
Battery discharge temperature	−20 °C to +60 °C
Humidity	5% to 95%, non-condensing
Features
Sensor	Accelerometer
Scenarios	Green driving, over-speed, jamming, GNSS fuel counter, excessive idling, unplug, towing, crash, auto and manual geofence, trip
Fuel monitoring	OBD-II (depends on vehicle model)
Ignition detection	Accelerometer, external power voltage, engine RPM
Sleep modes	GPS sleep, online deep sleep, deep sleep, ultra deep sleep
Updates	FOTA Web, Teltonika Configurator

Ask about Teltonika FMM00A

Tell us what you need to keep track of and Eddy will call you back himself with a straight answer about whether this is the right unit for it.

Eddy — one of the founders

A 30-second message, in his own voice

Common questions

How long does it take to install?

Seconds. It plugs into the OBD-II port. Nobody needs to open the dash.

Can someone unplug it?

Yes, and it will raise an unplug alert when they do. That is the trade-off of a plug-in unit. If the vehicle has to resist tampering, we fit a hardwired tracker instead.

Will it work in every vehicle?

It works with vehicles that have a standard OBD-II port, which covers most light vehicles. The data it can read, fuel in particular, depends on the vehicle model. Tell us what you drive and we will confirm.

Is it Cat M1 only?

Yes. It is an LTE Cat M1 unit with no 2G fallback, so it relies on LTE-M coverage where the vehicle operates.
